Simulating Models

Onyx models come with built-in simulation capabilites to quickly deploy trained models.

Simulating with AI Models

To recap from Training Models, AI models predict one step at a time by default. But for simulation and controls, we need to predict more than a single step and instead simulate trajectories over multiple steps. Managing state relations, numerical integration, and recursive model calls is tedious, so our models provide a built-in simulate() function to handle this for you efficiently.

To use this method, we just need to configure the model’s outputs, inputs, and states.

Once the model is trained/saved, the output-input configuration will be saved with it, so you will not need to set the outputs/inputs when loading the model.

from onyxengine.modeling import (
    Output,
    Input,
    State
)
import onyxengine as onyx

# Configure outputs and inputs for a new model
outputs = [
    Output(name='acceleration_prediction'),
]
inputs = [
    State(name='velocity', relation='derivative', parent='acceleration_prediction'),
    State(name='position', relation='derivative', parent='velocity'),
    Input(name='control_input'),
]

States are similar to dynamical system state-space models, where \(\dot{x} = f(x, u)\). In this example:

  • Model Outputs

    • acceleration (\(\dot{x}\)) is the output of the model.

  • Model Inputs

    • velocity (\(x_1\)) is the first state, whose parent acceleration is its derivative.

    • position (\(x_2\)) is the second state, whose parent velocity is its derivative.

    • control_input (\(u\)) is a control input, whose value is known at each time step.

The standard inputs are given at each time step, and outputs are predicted by the model, so they do not need any special attention.

The states, however, must be calculated from the outputs (or other states) and fed back into the model as inputs to simulate a trajectory. The available relations between states and their parents are:

  • “output”: The state is equal to an output of the model.

    • \(\text{state}_{t+1} = \text{parent}_t\)

  • “delta”: The parent is the delta of the state.

    • \(\text{state}_{t+1} = \text{state}_t + \text{parent}_t\)

  • “derivative”: The parent is the derivative of the state.

    • \(\text{state}_{t+1} = \text{state}_t + \text{parent}_t \cdot \text{dt}\)

Note

Often it can be easier for a hardware AI model to predict the delta or derivative of a feature than the feature itself.

simulate()

We will now use the simulate() method on a model. Here is the example code:

import torch
import onyxengine as onyx
from onyxengine.modeling import State

# Load our model
model = onyx.load_model('example_model')
total_inputs = len(model.config.inputs)
num_states = len([s for s in model.config.inputs if isinstance(s, State)])
num_inputs = total_inputs - num_states

# Example 1: Run inference with our model (using normal pytorch model prediction)
batch_size = 1
seq_length = model.config.sequence_length
test_input = torch.ones(batch_size, seq_length, total_inputs)
with torch.no_grad():
    test_output = model(test_input)
print(test_output)

# Example 2: Simulate a trajectory with our model
# Model will fill in the x_traj tensor with the simulated trajectory
sim_steps = 10
state_x0 = torch.ones(batch_size, seq_length, num_states)
inputs = torch.ones(batch_size, seq_length+sim_steps, num_inputs)
state_traj = torch.zeros(1, seq_length+sim_steps, total_inputs)
model.simulate(state_traj, state_x0, inputs)
print(state_traj)

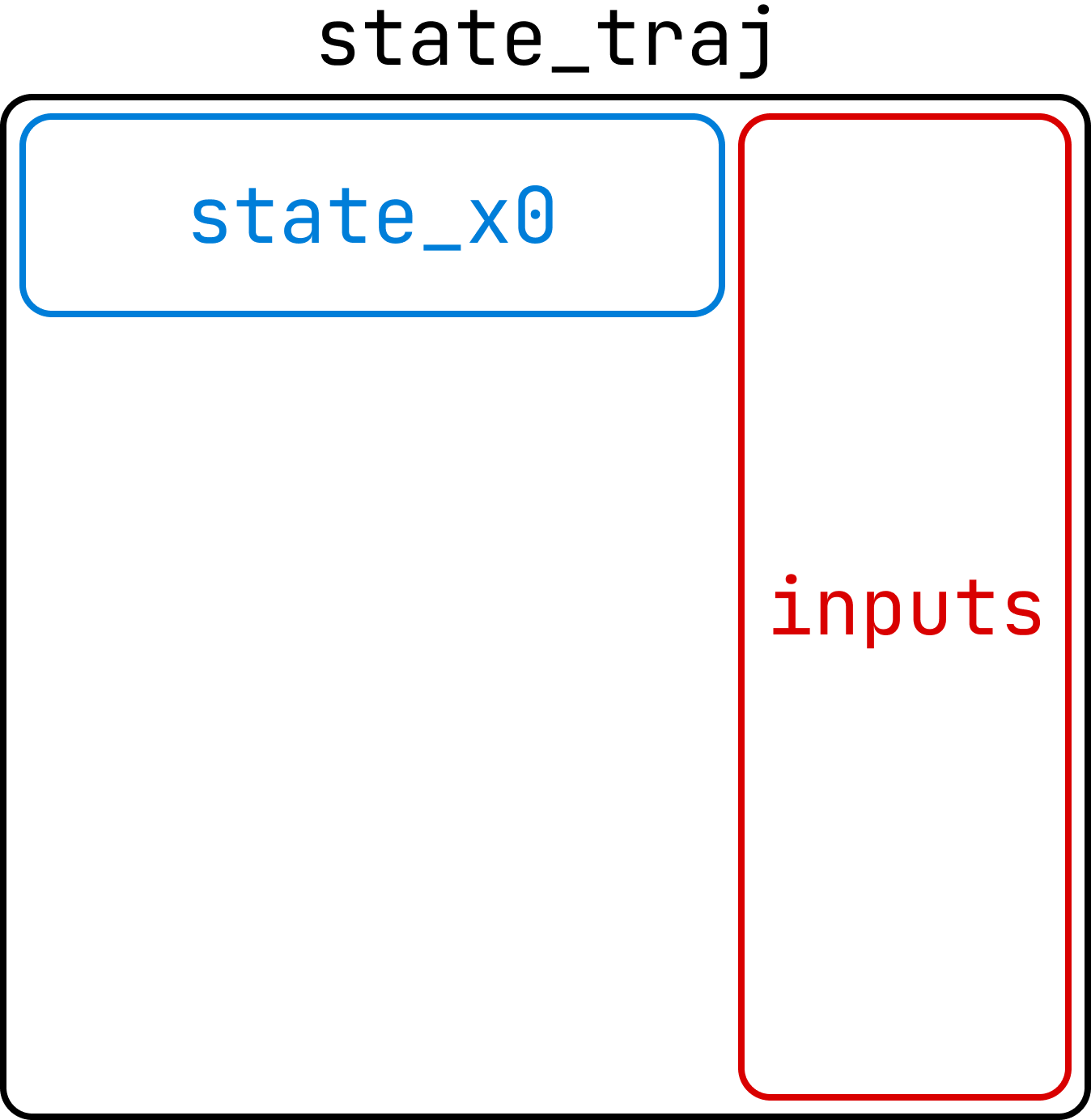

To make the simulate() method performant, we avoid using dynamic memory allocation by passing in the pre-allocated tensors needed:

Simulated trajectory solution


  • state_traj - The state trajectory tensor whose values will be “filled in” with the simulated trajectory.

    • Should be of shape (batch_size, sim_steps, model_inputs):

      • batch_size is the number of parallel trajectories to simulate

      • sim_steps is the number of time steps to simulate

      • model_inputs is the total number of inputs to the model (num_states + num_inputs).

  • state_x0 - The initial state for the simulation, and the first sequence_length state values of the traj_solution tensor.

    • Should be of shape (batch_size, seq_length, num_states)

  • inputs - The complete array of non-state inputs for the simulation.

    • Should be of shape (batch_size, sim_steps, num_inputs)

  • (Optional) model_outputs - Optionally, you can pass a tensor to obtain the model outputs

    • Should be of shape (batch_size, sim_steps, num_outputs)

The batch dimension allows for parallel simulation of multiple trajectories, which is where GPU acceleration becomes useful.

If you need to run some code (such as a controller) at each time step, you can use the simulate method in a loop and simulate one step at a time.
